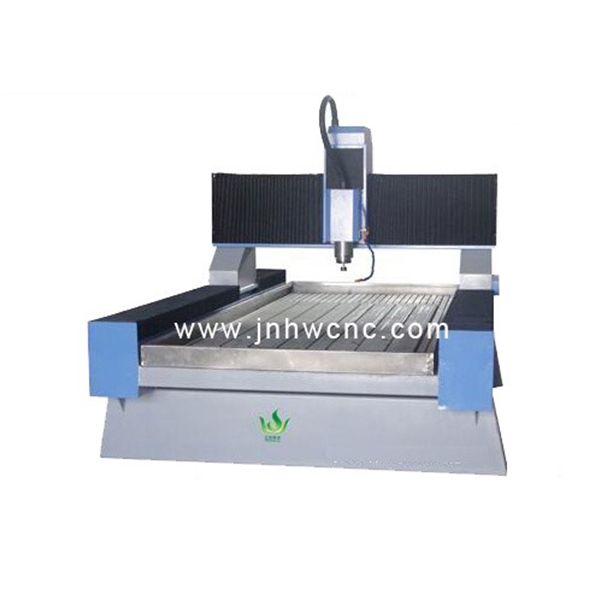

SW-6090 SW-9015 SW-9018 SW-1224 Work schedule (X * Y * Z) 600*900*300mm 900*1500*300mm 900*1800*300mm 1200*2400*300mm Carving depth 150mm 150mm 150mm 150mm Maximum carving speed 3000mm/min 3000mm/min 3000mm/min 3000mm/min Processing accuracy < 0.05/300mm < 0.05/300mm < 0.05/300mm < 0.05/300mm Carving instructions G code G code G code G code principal axis 3.0kw water-cooled spindle 3.0kw water-cooled spindle 3.0kw water-cooled spindle 3.0kw water-cooled spindle Tool diameter Φ3.175Φ6Φ12.7 Φ3.175Φ6Φ12.7 Φ3.175Φ6Φ12.7 Φ3.175Φ6Φ12.7 XYZ guide rail Square linear guide rail Square linear guide rail Square linear guide rail Square linear guide rail Transmission mode XY high-precision gear rack XY high-precision gear rack XY high-precision gear rack XY high-precision gear rack Z-axis ball screw transmission Z-axis ball screw transmission Z-axis ball screw transmission Z-axis ball screw transmission Model: SW-6090/SW9015/SW-9018/SW-1224 The bed body is welded with thick walled steel pipes and undergoes high-temperature tempering treatment to ensure minimal deformation, good rigidity, and high strength of the machine body. The Y-axis is driven by dual motors and carefully paired to ensure smooth movement. ◆ Adopting high-precision gear rack transmission, high precision, fast speed, and strong force. ◆ Adopting imported square linear guide rails, high precision, large load-bearing redundancy, and long service life. ◆ Fully optimized mechanical and electrical design, selecting various electrical components to minimize the failure rate. The machine tool is equipped with a water tank and an automatic water supply cooling system. ◆ All dust-proof and waterproof designs provide comprehensive protection for machine transmission components. Application scope: 3D relief and line carving, cutting, chamfering, drilling 2D carving of natural marble, granite, artificial stone, tombstones, milestones, tiles, inkstones, glass and other materials. Monthly production of over 1000 units. Our professional sales and after-sales service team will promptly and efficiently solve your problems. National Unified Sales Hotline: 400-6587-688 Jinan Huawei CNC Equipment Co., Ltd Address: No. 18-1 Tonghua Road, Jinan City, Shandong Province Postal Code: 250000 Phone: 0531-88620266 Fax: 0531-88276988 Mobile phone: 15853195586 E-mail: cncmachine@jnhwcnc.com {1} {2} {3} {4} {5} {6} {7} {8} {9} {10} {11} {12} {13} {14} {15} {16} {17} {18} {19} {20} {21} {22} {23} {24} {25} {26} {27} {28} {29} {30} {31} {32} {33} {34} {35} {36} {37} {38} {39} {40} {41} {42} {43} {44} {45} {46} {47} {48} {49} {50} {51} {52} {53} {54} {55} {56} {57} {58} {59} {60} {61} {62} {63} {64} {65} {66} {67} {68} {69} {70} {71} {72} {73} {1} {2} {3} {4} {5} {6} {7} {8} {9} {10} {11} {12} {13} {14} {15} {16} {17} {18} {19} {20} {21} {22} {23} {24} {25} {26} {27} {28} {29} {30} {31} {32} {33} {34} {35} {36} {37} {38} {39} {40} {41} {42} {43} {44} {45} {46} {47} {48} {49} {50} {51} {52} {53} {54} {55} {56} {57} {58} {59} {60} {61} {62} {63} {64} {65} {66} {67} {68} {69} {70} {71} {72} {73}
|
