| Serial number | describe | parameter |
| one | X. Y-axis and Z-axis travel | 1600*1300*100mm |
| two | Platform size | 1600*1300mm |
| three | Maximum operating speed | 12m/min |
| four | Maximum carving speed | 6-8m/min |
| five | resolving power | 0.01mm |
| six | Repetitive positioning accuracy | < 0.05mm |
| seven | processor | Weihong |
| eight | Carving instructions | G code *. u00 *. mmg *. plt |
| nine | Software operating environment | win98/2000/xp |
| ten | working voltage | AC220V/50Hz |
| eleven | Spindle power | 1.5KW |
| twelve | Spindle speed | 0--24000r/min |
| thirteen | operation mode | Step by Step |

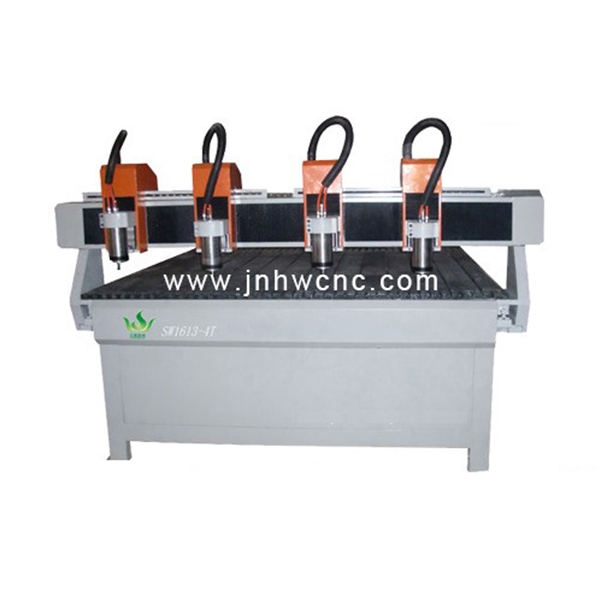

1. Four head carving: Four heads can work simultaneously on the same pattern, greatly improving the processing speed of the board and completing the work efficiency of four devices in the same time. In some cases where the processing volume is not large, single spindle independent work can also be achieved, effectively and reasonably controlling production costs.
2. During batch processing, the product has good consistency and high quality.
2. During batch processing, the product has good consistency and high quality.
3. The overall cast iron bed is sturdy and does not deform. Longmen style mobile, fixed workbench, can process materials on the workbench freely.
4. Adopting the Weihong CNC system, it can achieve breakpoint continuation carving and power-off memory function, with convenient and intuitive operation, suitable for relief carving.
5. Compatible with G machining codes generated by various CAD/CAM design software such as Type3/Artcam/Jingdiao/Wentai.
Specially designed for customers who require large-scale and small workpiece processing, suitable for processing cabinet doors, craft gifts, relief crafts, classical furniture carving, screen carving, non-ferrous metal carving and cutting, and many other industry products.
Monthly production of over 1000 units.
Our professional sales and after-sales service team will promptly and efficiently solve your problems.
